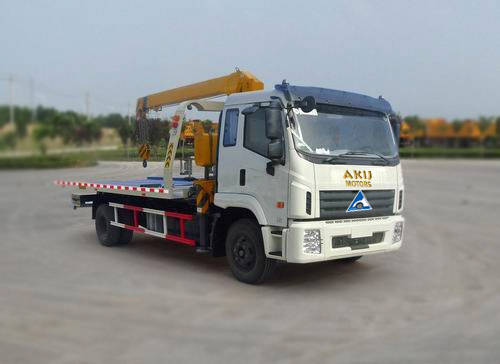

Wrecker
| Specifications | |
|---|---|
|
Outline size(L×W×H) (mm) |
9280×2495×3120
|
|
Rating mass(kg) / Empty mass(Kg) |
14370 |
|
Full mass(kg) |
16000 |
|
Emission standard |
Euro 2
|
|
Engine |
WD615.62 ((weichai) |
|
Type |
6 Cylinder Diesel engine
|
|
Power/displacement(KW/ML) |
9726 |
|
Wheelbase(mm) |
5600 |
|
Axle load(kg) F/R Front/ Rear |
7000/13500
|
|
Tire |
11.00-20,11.00R20 |
|
Max speed (km/h) |
90
|
|
Front overhang(mm) |
1560 |
|
Rear overhang(mm)
|
2120
|
|
Front track(mm) |
1958,1939 |
|
Rear track(mm) |
1800
|
|
Approach angel(°) |
15 |
|
Departure angle(°) |
20
|
|
Steering |
Power steering |
|
Brake |
Air brake
|
|
Cabin |
Straight head ,single row with bed |
|
Rating lifting capacity(kg) |
1500 |
|
Maximum crane height(mm) |
5000 |
|
Bracket arm extend-retract distance (mm) |
700 |
|
Crane arm extend-retract distance (mm) |
3000
|
|
Bracket arm maximum length(mm) |
3100 |
|
Maximum towing speed(km/h) |
40 |
|
Maximum crane capacity(kg) |
8000×2 NO.
|
|
Support leg |
2 |
|
Rating towing capacity(kg) |
8000×2 |
|
Leg span(mm) |
800 |
|
Steel wire rope length(m) |
40 |
|
Maximum support strength(KN) |
120 |
|
Wire rope speed(m/min) |
8
|
