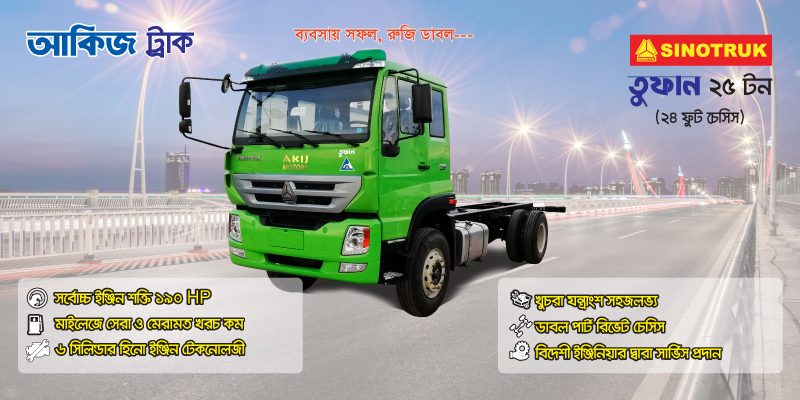

Tufan Plus 24 Feet Body
| Specifications | ||
|---|---|---|
| Model | Tufan 20 & 24 feet chassis | |
| Engine | YC6J190-33, 6-cylinder in-line, 4-stroke, direct injection, water-cooled, intercooler, turbocharged | |
| Power | 140 kW (190 hp) @ 2500 rpm | |
| Torque | 630 Nm @ 1400-1700 rpm | |
| Piston Displacement | 6494 cc | |
| Gear | DC6J65TC (6 forward speeds + 1 reverse speed) | |
| Turning Radius | 10.5 | |
| Clutch | 395 mm, single dry plate, dry coil spring, hydraulic air assist operating | |
| Steering | Power Steering | |
| Suspension | Leaf spring 11/10+10 | |
| Max. Climbing Slope | 27.00% | |
| Front Axle | 6 tons | |
| Rear Axle | 10 tons | |
| Rear Axle Ratio | 6.33 | |
| Frame | Double part rivet chassis, 865 x 250 x 80 (7+4) (mm) | |
| Max. Speed | 95 km/h | |
| Cabin | Tiltable, H5 sleeper cabin | |
| Wheelbase | 4700/5400 mm | |
| Cargo Body Dimension | 20 & 24 feet | |
| Overall Dimension | Length 27/30 feet x Width 8.20 feet x Height 9.84 feet | |
| Curb Weight | 5300 kg | |
| Tires | 10.00 R20, (6+1) (radial) | |
| Brake System | Air brake | |
| Payload | 11050 kg | |
| Gross Vehicle Weight | 16000 kg | |
| Ground Clearance | 274 mm | |
| Battery | (2 x 12) 24 Volts, 165 Ah | |
| Wheel Track | Front 1980, Rear 1860 | |
| Driving | 4 x 2 | |
| Fuel Tank | 300 liters | |
