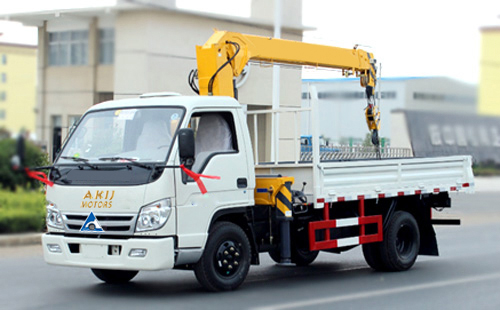

Truck Mounted Crane
| Specifications | ||||
|---|---|---|---|---|
| Engine | ||||
|
Engine model and emission |
BJ493ZLQ Isuzu 4JB1 Tech engine (Euro II) |
|||
|
Engine type |
four-cylinder,in-line,water-cooling,DI,four-stroke,supercharger with intercooler, diesel engine |
|||
|
Rated power of engine (kw/rpm) |
80/3600 |
|||
|
Maximum torque (N.m/rpm) |
245/2100-2300 |
|||
|
Engine displacement (L) |
2.771 |
|||
|
Gearbox |
|
|||
|
Gearbox type |
LC5T88 |
|||
|
Rear axle |
|
|||
|
Rear axle type |
Isuzu Hydraulic |
|||
|
Rear axle speed ratio |
6 |
|||
|
Cabin type/width (mm) |
Right side driving, flat head,single-row/1695 |
|||
|
Drive form |
4×2 |
|||
|
Tire type/number |
7.00-16/6+1 |
|||
|
Brake |
Service brake type |
Hydraulic Brake |
||
|
Parking brake type |
Central drum type |
|||
|
Steering device |
power steering |
|||
|
Weight parameter |
||||
|
Curb weight (Kg) |
2210 |
|||
|
MAX. TOTAL WEIGHT (Kg) |
6390 |
|||
|
Performance parameter |
||||
|
Maximum speed (no load)(km/h) |
104 |
|||
|
Maximum gradeability (%) |
≥29% |
|||
|
Minimum ground clearance (mm) |
≥1186 |
|||
|
Dimension parameters |
|
|||
|
Overall dimensions (LxWxH)mm |
6030x1900x2780 |
|||
|
Internal van dimensions (LxWxH)mm |
4250×1810×360/1.5×1.2 |
|||
|
Wheelbase (mm) |
3360 |
|||
|
Rated voltage (V) |
12 |
|||
|
Capacity of the fuel tank (L) |
120 |
|||
|
Standard configuration |
Spare tire, electronically controlled flameout, adjustable steering wheel, heater |
|||
|
Selective configuration |
Air-conditioner |
|||
| Crane Specifications | ||||
|
Max Lifting Capacity(kg) |
2000 |
|||
|
Crane Arm Spec |
3 Section Arm |
|||
|
Crane Arm Length(mm) |
7730 |
|||
|
Max Lifting Moment(T.M) |
4.2 |
|||
|
Recommend Power(kw) |
9 |
|||
|
Max Oil flow of Hydraulic system(L/min) |
20 |
|||
|
Max Pressure of Hydraulic System(Mpa) |
16 |
|||
|
Oil Tank Capacity(L) |
25 |
|||
|
Crane Weight(kg) |
950 |
|||
|
Installation Space(mm) |
850 |
|||
