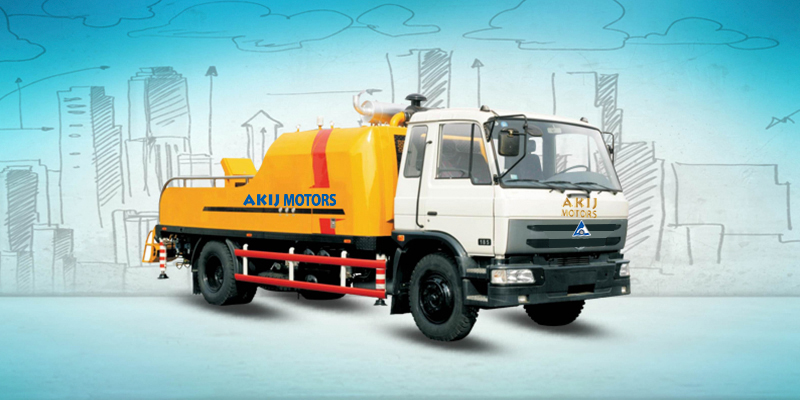

Truck Mounted Concrete Pump
| Specifications | |
|---|---|
|
Performance |
|
|
Maximum output - rod side |
118 yd³/hr (90m³/hr) |
|
Maximum output - piston side |
78 yd³/hr (60m³/hr) |
|
Maximum pump pressure - rod side |
1,015 psi (70 bar) |
|
Maximum pump pressure - piston side* |
1,537 psi (106 bar) |
|
Technical Information |
|
|
Material cylinder diameter |
7.9" (200mm) |
|
Stroke length |
55" (1,400mm) |
|
Maximum strokes per minute - rod side |
35 |
|
Maximum strokes per minute - piston side |
23 |
|
Variable volume control |
0 to Full |
|
Vibrator |
Standard |
|
Hard chromed material cylinders |
Standard |
|
Hydraulic system |
Free Flow |
|
Hydraulic system pressure |
5,075 psi (350 bar) |
|
Differential cylinder diameter |
4.3" (110mm) |
|
Rod diameter |
2.5" (63mm) |
|
Maximum size aggregate |
2.5" (63mm) |
|
Water tank capacity |
172 gal (650L) |
|
Valve & Hopper |
|
|
S-Valve - heavy duty |
2018 |
|
Reduction |
8" to 6" (200 to 150mm) |
|
Hopper capacity |
19.4 ft³ (550L) |
|
Hopper height |
50" (1,270mm) |
*Please be informed "AKIJ Motors" has every rights to change the content without any prior notice.
