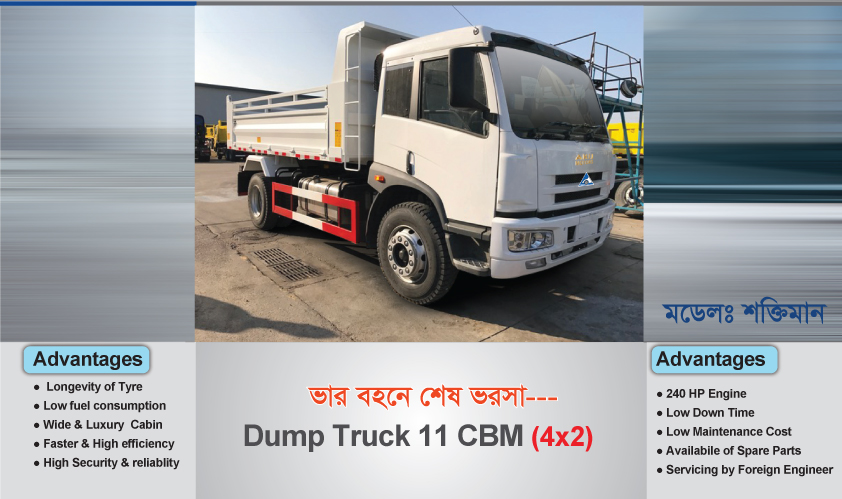

Shaktiman 11 CBM
| Specifications | |
|---|---|
| Model | Shaktiman |
| Engine | Weichai WP6.240E32, 6 In-line, Water Cooling, EGR, Air Intercooler, Turbocharged |
| Power | 155 kW (240 Horsepower) @ 2300 RPM |
| Torque | 800 Nm @ 1400 - 1600 RPM |
| Piston Displacement | 6750 cc |
| Transmission | FAST 8JS10ST (8 Forward Speeds + 2 Reverse Speeds) |
| Maximum Climbing Grade | 28% |
| Clutch | 395 mm, Dry Type, Single Plate Dry Coil Spring, Diaphragm Spring Clutch, Hydraulic Controlled Air Added Power Operating |
| Steering | Integrated Power Steering |
| Suspension | Leaf Spring |
| Frame | Side Rails, Punching and Riveted Construction |
| Maximum Loading Front Axle | 6500 kg |
| Maximum Loading Rear Axle | 13000 kg |
| Rear Axle Ratio | 5.833 |
| Wheelbase | 3800 mm |
| Maximum Speed | 90 km/h |
| Cabin | 44 Degrees, Integrated Front Tiltable |
| Front Wheel Track | 2020 mm |
| Rear Wheel Track | 1860 mm |
| Overall Dimension | Length 6735 x Width 2500 x Height 3250 mm |
| Kerb Weight | 7650 kg |
| Tires | 10.00 R20 (10+1) |
| Brake System | Dual Circuit, Air Pressure Brake |
| Maximum Loading Capacity | 12500 kg |
| Vehicle Total Weight | 16000 kg |
| Ground Clearance | 298 mm |
| Battery | (2 x 12) 24 Volt, 150 Ampere |
| Fuel Tank | 400 liters |
| Driving | 4 x 2 |
| Running Condition | Designed for Bangladeshi weather and roads, capable of carrying stone, sand, soil, etc. |
Terms & Conditions:
- Delivery on both cash and hire purchase.
- For hire purchase, minimum down payment is 30%.
- Registration & Insurance are free of charge.
- Installment period maximum up to 36 months.
- 6 times free services.
- For covered van body making charge is applicable.
*Please be informed "AKIJ Motors" has every right to change the content without any prior notice.
