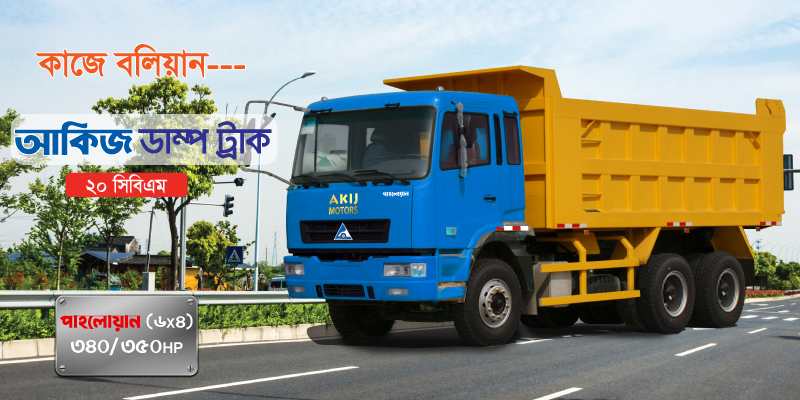

Pahloan20 CBM
| Specifications | |
|---|---|
| Model | Pahlwan |
| Engine | Weichai WP10.340E32, 6 Inline, Water Cooling, EGR, Air Intercooler, Turbocharged |
| Power | 250 kW (340 Horsepower) @ 2200 RPM |
| Torque | 1350 Nm @ 1200 - 1600 RPM |
| Piston Displacement | 9726 cc |
| Transmission | FAST 9JSD135T (8 Forward Speeds + 2 Reverse Speeds) |
| Maximum Climbing Slope | 30% |
| Clutch | 430 mm, Dry Type, Single Plate Dry Coil Spring, Diaphragm Spring Clutch, Hydraulic Controlled Air Added Power Operating |
| Steering | Re-Cycle Ball Type Hydraulic Power Steering |
| Suspension | Leaf Spring / Bogie Type |
| Frame | Side Reels, Punching and Riveted Construction |
| Maximum Load Front Axle | 5760 kg |
| Maximum Load Rear Axle | 9180 kg |
| Rear Axle Ratio | 5.921 |
| Wheelbase | 3500+1350 mm |
| Maximum Speed | 75 km/h |
| Cabin | 44 Degrees, Integrated Front Tiltable |
| Front Wheel Track | 2020 mm |
| Rear Wheel Track | 1880 mm |
| Overall Dimension | Length 7950 x Width 2550 x Height 3300 mm |
| Kerb Weight | 14940 kg |
| Tires | 11.00 R20, (10+1) |
| Brake System | Dual Circuit, Air Pressure Brake |
| Maximum Loading Capacity | 41000 kg |
| Total Weight of Vehicle | 25000 kg |
| Ground Clearance | 314 mm |
| Battery | (2 x 12) 24 Volt, 180 Ampere |
| Fuel Tank | 400 liters |
| Driving | 6 x 4 |
| Operating Condition | Designed for Bangladeshi weather and road conditions, capable of carrying stones, sand, soil, etc. |
Terms & Conditions:
- Delivery on both cash and hire purchase.
- For hire purchase, minimum down payment is 30%.
- Registration & Insurance are free of charge.
- Installment period maximum up to 36 months.
- 6 times free services.
- For covered van body making charge is applicable.
*Please be informed "AKIJ Motors" has every right to change the content without any prior notice.
