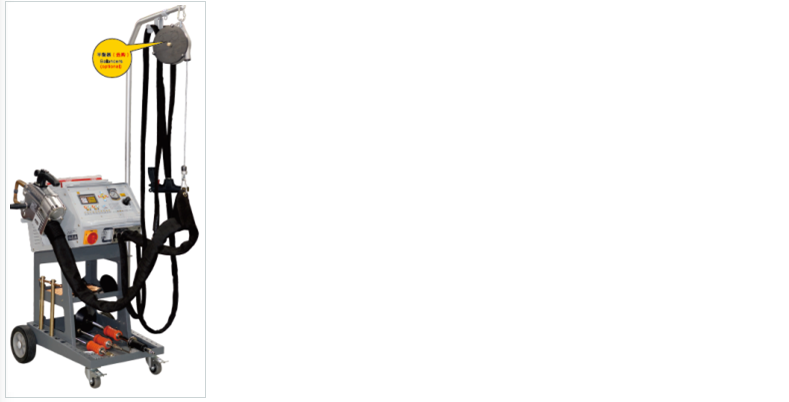

Multifunctional Spot Welding Machine
| Specifications | |
|---|---|
|
Input voltage: |
AC380 50/60Hz |
| Input power: | 30KVA |
| Input current: | 60A |
| Max welding current: | 9900A |
| Output voltage carbon rod heating: | AC6-10V |
| Output voltage washer melting rate: | AC1-12V |
| Output voltage butt-weld: | AC1-13V |
| One-side welding thickness: | 1.0+1.5mm |
| Two-side welding thickness: | 2.5+2.5mm |
| Maximum spot weld nugget: | 7mm |
| Air supply pressure: | 6-10kg |
| Operation way: | Electronic timer continuity |
| Weld timing range: | 0-99s |
| Cable length: | 2500+2500, 2300+2300mm |
| Dimensions: | 700x530x1800mm |
| Weight: | 138kg |
