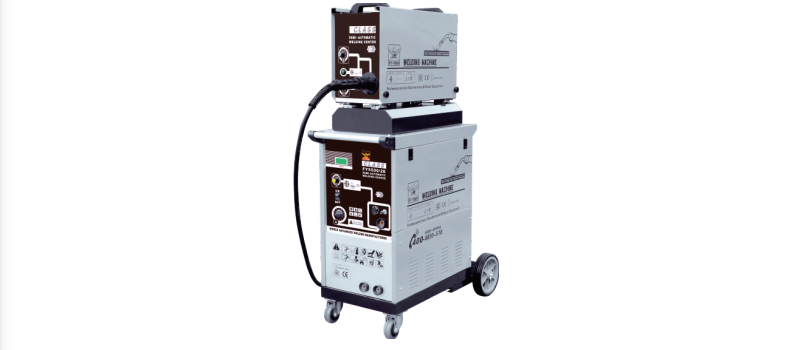

Mig Welder
Features:
- Voltage auto-detect function
- Welding gun test function
- Digital display
- Multi-bridge rectifier
- Wire feeder with two-roll dual drive system
- Complete with heated regulator
- Adjustable dynamic arc characteristic
- Good forming capability and quality weld appearance
| Specifications | |
|---|---|
| Input Voltage: | AC380-400V 3-phase |
| Frequency: | 50/60Hz |
| Rated maximum supply current: | 21.6A |
| Maximum effective supply current: | 16.4A |
| Output current/voltage: | 35A/17V-320A/30V |
| No-load voltage: | 20-40V |
| Welding current range: | 35-320A |
| Duty cycle: | 35% |
| Insulation grade: | F |
| Weld able wire: | Low carbon Steel Solid |
| Type: | Wire?0.8?1.0?mm All-in-one |
| Voltage regulation range: | 10steps |
| Dimensions: | 880 x 470 x 890mm |
| Weight: | 95kg |
