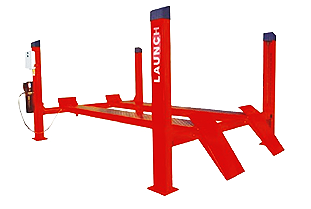

Four Post Lift

Specification:

• Rated load： 4000kg
• Lifting height：1900mm
• Initial height：170mm　　　
• Lifting time：≤60s
• Lowering time：≥20s≤40s
• Max. Drive-on width：3045mm
• Platform length：4240mm
• Platform width：500mm
• Overall width: 3445mm
• Overall height：2172mm
• Motor power ：2. 2kw
• Motor voltage：3 phase/380v or Single phase/220V
• Working noise：≤75dB（A）
• Working oil pressure：16MPa

• Working air pressure： 0.5-0.7MP
