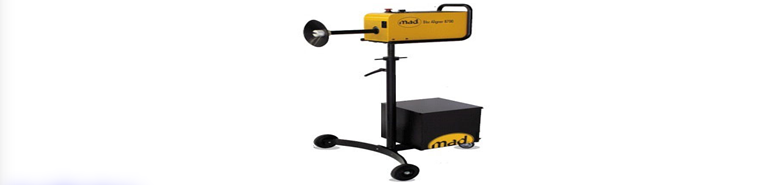

Disk Aligner

Specification:

• Product name: AM-8700 DISC ALIGNER;
• Working height min/max: 1/1.25m;
• Drive speed: 98rpm;
• Electrical specifications: 220v/50Hz 110V/60Hz;
• Weight: 55kg;
• Ambient temperature range: -25to50°c;
• Turning accuracy: ≤0.002-0.005mm;
• Brake disc run out: ≤0.00-0.005mm;
• Brake disc thickness variation: 0.005-0.01mm;
• Brake disc surface roughness Ra: Ra 1.5-2.0µm.

Features

1. Completely eliminates Run-out, DTV, excessive brake noise and rust;
2. Saves dismantling, re-assembly and adjustment of the brake disc;
3. Guarantees perfect contact between the brake pads and brake disc;
4. Can be used everywhere, both on a car lift or at ground level;
5. Fits on 99 % of all passenger cars and light commercial vehicles, with or without ABS;
6. No depending on outside specialists, no need for stocking brake discs;
7. One stops shopping for brake service;
