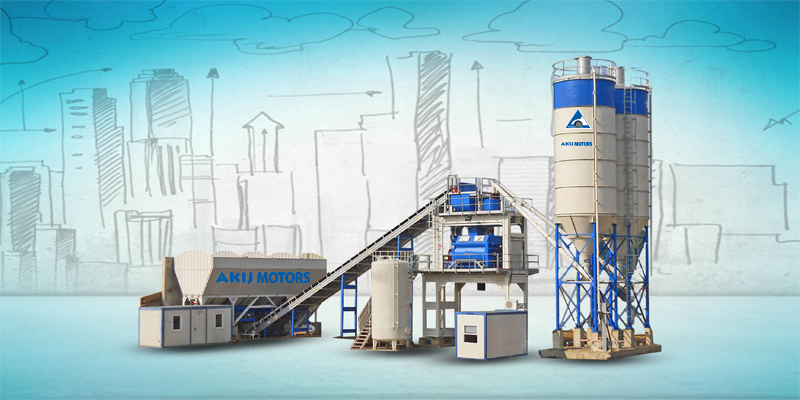

Batching Plant
| Technical Specifications of AKIJ Concrete Batching Plant | |
|---|---|
|
Details |
AKIJ CRP 600IL |
|
Output Theoretical |
60 cu. Mtr./hr |
|
In Line Bin |
4/5/6 |
|
Charging Conveyor |
Chevron Belt Conv. |
|
Cement/ Filler Weighing System |
Yes |
|
Water Weighing System |
Yes |
|
Admixture Weighing System |
Yes |
|
Mixer |
Twin Shaft |
|
Maximum Size of Aggregate |
80 MM |
|
Water Sprinkling & Gravity Discharge System |
Yes |
|
Air Compressor |
Yes |
|
Screw Conveyor For Cement |
Yes |
|
Cement Filling Hopper |
- |
|
Control System |
Automatic |
|
Discharge Height |
4.1 mtr. |
| Technical Specifications of AKIJ Concrete Batching Plant-II | |
|---|---|
| Mixing system | JS2000 Mixer, Auto Discharging, Discharging Height 4.2m |
| Electric control system | Control cabin, control cabinet, Computer control system, Air conditioner |
| Aggregate hoisting system | Small angle conveying belt, enclosed with temporary storage bin |
| Aggregate weighing system | PL3200-4 (separate metering), 4x20m3 aggregate hopper, batcher, weighing hopper, aggregate belt conveyor, sensor |
| Cement weighing system | Cement weighing hopper, pneumatic butterfly valve, sensor |
| Fly ash weighing system | Fly ash weighing hopper, pneumatic butterfly valve, sensor |
| Powder additive weighing system | Additive weighing hopper, pneumatic butterfly valve, Sensor |
| Water weighing system | Two kinds of water pump, water weighing hopper, sensor |
| Liquid additive weighing system | 2 kinds of corrosion-resistant pump, weighing hopper, sensor, discharging cylinder |
| Pneumatic system | Air compressor, pneumatic parts |
| Filler supply system | 150t bolted filler silo, Φ273×10m screw conveyor, WAM butterfly valve and dust collector, 3 unit |
*Please be informed "AKIJ Motors" has every rights to change the content without any prior notice.
