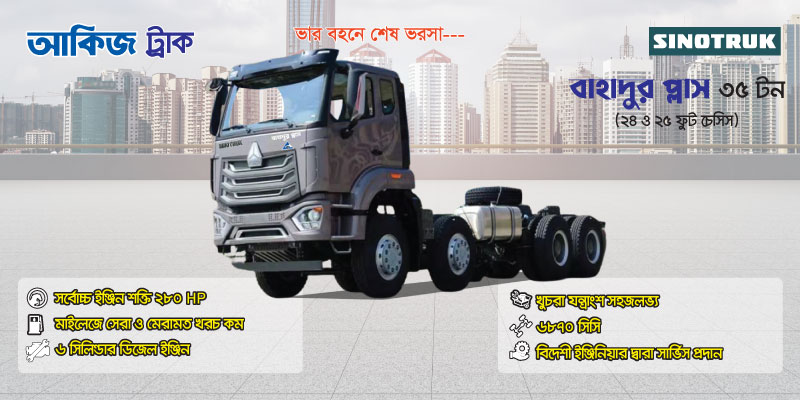

Bahadur Plus
| Specifications | |
|---|---|
| Model | Bahadur Plus 35 Ton |
| Engine | MC07.28-30, 280HP |
| Power | 203 kW (280 hp) @ 2300 rpm |
| Torque | 1100 Nm @ 1200-1800 rpm |
| Piston Displacement | 6870 cc |
| Transmission | (9 forward speeds + 1 reverse speed) |
| Max. Climbing Slope | 26.08 degrees |
| Clutch | 430 mm, single dry plate dry coil spring clutch, hydraulically operating with air assistant |
| Steering | Integrated power steering |
| Suspension | |
| Frame | 300 x 80 x (8+5) mm |
| Max. Loading Front Axle | 2x7500 kg |
| Max. Loading Rear Axle | 5000 kg lifting axle (air bag) and 16000 kg driven axle |
| Rear Axle Ratio | 5.73 |
| Wheelbase | 1800+3500+1350 mm |
| Max. Speed | 95 km/h |
| Cabin | H77R Cab with one sleeper, tiltable by hydraulic cylinder |
| Front Wheel Track | 2022 mm |
| Rear Wheel Track | 1860 mm |
| Overall Dimension | 10050x2496x3100 mm (approx.) |
| Curb Weight | 9000 kg |
| Tires | 10.00R20-18PR (10+1) |
| Brake System | |
| Payload | 27000 kg |
| Gross Vehicle Weight | 36000 kg |
| Ground Clearance | 285 mm |
| Battery | 2x12 Volts, 165 Ah |
| Fuel Tank | 400 liters, aluminum tank with locker |
| Driving | 8x2, 8x4 |
| Condition | Made for Bangladesh's weather and roads, capable of carrying sand, soil, stone, coal, etc. |
- Delivery on both cash and hire purchase.
- For hire purchase, minimum down payment is 30%.
- Registration & Insurance are free of charge.
- Installment period maximum up to 36 months.
- 6 times free services.
- For covered van body making charge is applicable.
*Please be informed "AKIJ Motors" has every rights to change the content without any prior notice.
