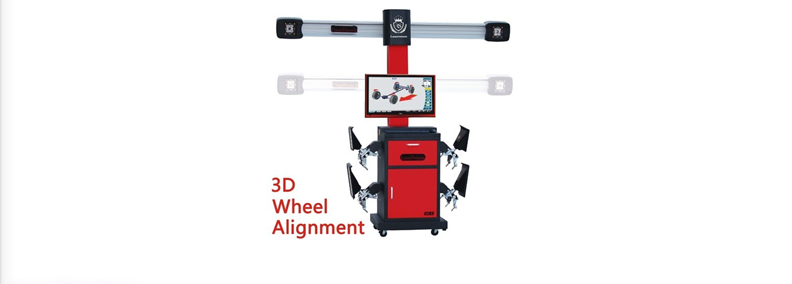

3D Wheel Aligner

Specification:

• Power: 220V 50~60Hz
• Show Precision: 0.01º/1'
• Measuring Precision: 0.02º/3'
• Total Toe-in: ±20º
• Single Toe-in: ±10º
• Camber: ±10º
• Caster: ±20º
• Kingpin inclination angle: ±20º
• Included Angle: 0~30º
• Monitor: 32 Inc.
• Printer Mouse & Keyboard: Do.

Features:

3Dmax Dynamic Display System
It can make the observation of the real 3D profile of each wheel at any time vividly and conveniently.

No Electronic Components
There are no electronic components, thus none of electronic circuits trouble will occur. And the solid-state target disks made of special materials are sturdy and durable.

Four-point Wheel Clamps
It is suitable for various wheels with diameters ranging 11" to 22". The holding tire clamps and the wheel clamps with maximum 27 " are optional.

3D Animation Technics
With the specific high-speed camera and the high-performance computers, it takes only one minute to complete the basic position measurement.

Reminding Window
Helping users complete the measurement, it offers feedback and monitor the measurement process effectively.

Pre-tightening Rotatable Jaw
Fitting for most of the external steel rim and coordinating with the anti-loose retractor, it effectively prevents clamps from falling.

Pushing the Vehicle Once
The deviation caused by steel rim and mechanical components deformation, installation errors and other factors can be compensated comprehensively.

Body Height Measurement
Utilizing the target disks for height measrsuring (optional), the height of the vehicle body’s relative plane can be quickly measured.

3D Animation Adjustment Guidance
Various adjustment methods of chassis position parameter are available.

Animation Operation Reminding
All the operation systems are instructed by 3D animation which prompts the users to prepare for the next step.

Measurement Range and Accuracy
